Caesarova šifra

zpráva:	4	2	X	K	A	L	A	B	0	0	J	K
klíč:	J	K	+J	−K	+J	−K	+J	−K	J	K	+J	−K
zašif.:	#	#	Z	A	K	A	K	A	0	0	T	A

Časový diagram simulace

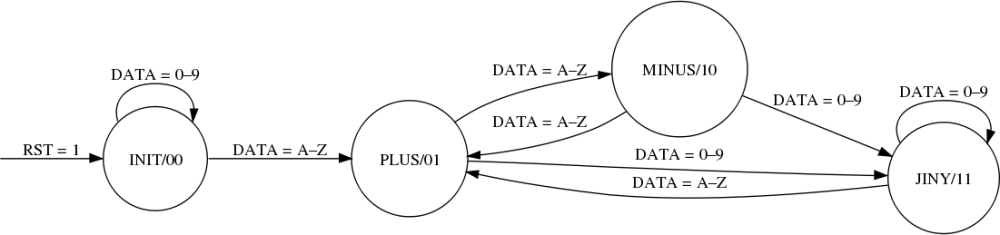

Grafová reprezentace

caesar.vhdl

library IEEE;
use IEEE.std_logic_1164.all;
use IEEE.std_logic_unsigned.all;

-- Caesar component ---------------------------------------------------
entity caesar is
   port(
         DATA : in std_logic_vector(7 downto 0);
         KEY : in std_logic_vector(7 downto 0);
         CLK : in std_logic;
         RST : in std_logic;

         CODE : out std_logic_vector(7 downto 0)
	);
end caesar;

architecture behavioral of caesar is
    -- internal signals
    signal operation : std_logic_vector(1 downto 0);
    signal d_data, d_key: std_logic_vector(7 downto 0);

   type t_stav is (INIT, PLUS, MINUS, JINY);
   signal current_state, next_state: t_stav;

begin
    data_reg: process(CLK, RST)
    begin
      if (RST = '1') then
            d_data <= (others => '0');
      elsif (CLK'event and CLK = '1') then
            d_data <= DATA;
      end if;
    end process;

    key_reg: process(CLK, RST)
    begin
      if (RST = '1') then
            d_key <= (others => '0');
      elsif (CLK'event and CLK = '1') then
            d_key <= KEY;
      end if;
    end process;

    sync_logic: process(CLK, RST) --RST
    begin
	if (RST = '1') then
	    current_state <= INIT;
	elsif (CLK'event AND CLK = '1') then
	    current_state <= next_state;
    end if;
    end process sync_logic;

    next_state_logic: process(current_state, DATA) --FSM
    begin
	case (current_state) is
	    when INIT =>
		if (DATA >= "01000001" AND DATA <= "01011010") then --AZ
		    next_state <= PLUS;
		else
		    next_state <= INIT;
		end if;
	    when PLUS =>
		if (DATA >= "01000001" AND DATA <= "01011010") then --AZ
		    next_state <= MINUS;
		else
		    next_state <= jiny;
		end if;
	    when MINUS =>
		if (DATA >= "01000001" AND DATA <= "01011010") then --AZ
		    next_state <= PLUS;
		else
		    next_state <= jiny;
		end if;
	    when jiny =>
		if (DATA >= "01000001" AND DATA <= "01011010") then --AZ
		    next_state <= PLUS;
		else
		    next_state <= jiny;
		end if;
	end case;
    end process next_state_logic;

    vystup_logic: process(current_state, KEY) --vystupy
    begin
	case (current_state) is
	    when INIT =>
		operation <= "00";
	    when PLUS =>
		operation <= "01";
	    when MINUS =>
		operation <= "10";
	    when jiny =>
		operation <= "11";
	end case;
    end process vystup_logic;

    ALU: process(d_data, d_key, operation)
	variable temp: std_logic_vector(7 downto 0);
    begin
	case (operation) is
	    when "00" => --init
		code <= "00100011"; --#
	    when "01" => --plus
		temp := d_data + (d_key - "01000000"); --@ (A-1)
		if (temp > "01011010") then --Z
		    temp := "01011010"; --Z
		end if;
		code <= temp;
	    when "10" => --minus
		temp := d_data - (d_key - "01000000"); --@ (A-1)
		if (temp < "01000001") then --A
		    temp := "01000001"; --A
		end if;
		code <= temp;
	    when "11" => --jiny
		code <= d_data;
	    when others =>
		null;
	end case;
    end process;

end behavioral;

caesar_tb.vhdl

library IEEE;
use IEEE.std_logic_1164.all;
use IEEE.std_logic_unsigned.all;

entity caesar_tb is
end caesar_tb;

architecture behavioral of caesar_tb is
constant period : time := 10 ns;

component caesar
	port(
      DATA : in std_logic_vector(7 downto 0);
      KEY : in std_logic_vector(7 downto 0);
      CLK : in std_logic;
      RST : in std_logic;

      CODE : out std_logic_vector(7 downto 0)
	);
end component;

-- Testbench internal signals
signal clk : std_logic := '0';
signal rst : std_logic := '1';
signal data : std_logic_vector(7 downto 0);
signal key : std_logic_vector(7 downto 0);
signal code : std_logic_vector(7 downto 0);

begin

	uut : caesar
	port map(
      DATA => data,
      KEY => key,
      CLK => clk,
      RST => rst,
      CODE => code
	);

	clk <= NOT clk AFTER period / 2;

	test : process
	begin
	    wait until clk'event AND clk = '1';
	    rst <= '0';

	    key  <= "01001010"; --J
	    data <= "00110100"; --4
	    wait until clk'event AND clk = '1';

	    key  <= "01001011"; --K
	    data <= "00110010"; --2
	    wait until clk'event AND clk = '1';

	    key  <= "01001010"; --J
	    data <= "01011000"; --X
	    wait until clk'event AND clk = '1';

	    key  <= "01001011"; --K
	    data <= "01001011"; --K
	    wait until clk'event AND clk = '1';

	    key  <= "01001010"; --J
	    data <= "01000001"; --A
	    wait until clk'event AND clk = '1';

	    key  <= "01001011"; --K
	    data <= "01001100"; --L
	    wait until clk'event AND clk = '1';

	    key  <= "01001010"; --J
	    data <= "01000001"; --A
	    wait until clk'event AND clk = '1';

	    key  <= "01001011"; --K
	    data <= "01000010"; --B
	    wait until clk'event AND clk = '1';

	    key  <= "01001010"; --J
	    data <= "00110000"; --0
	    wait until clk'event AND clk = '1';

	    key  <= "01001011"; --K
	    data <= "00110000"; --0
	    wait until clk'event AND clk = '1';

	    key  <= "01001010"; --J
	    data <= "01001010"; --J
	    wait until clk'event AND clk = '1';

	    key  <= "01001011"; --K
	    data <= "01001011"; --K
	    wait until clk'event AND clk = '1';
	end process;

end behavioral;
